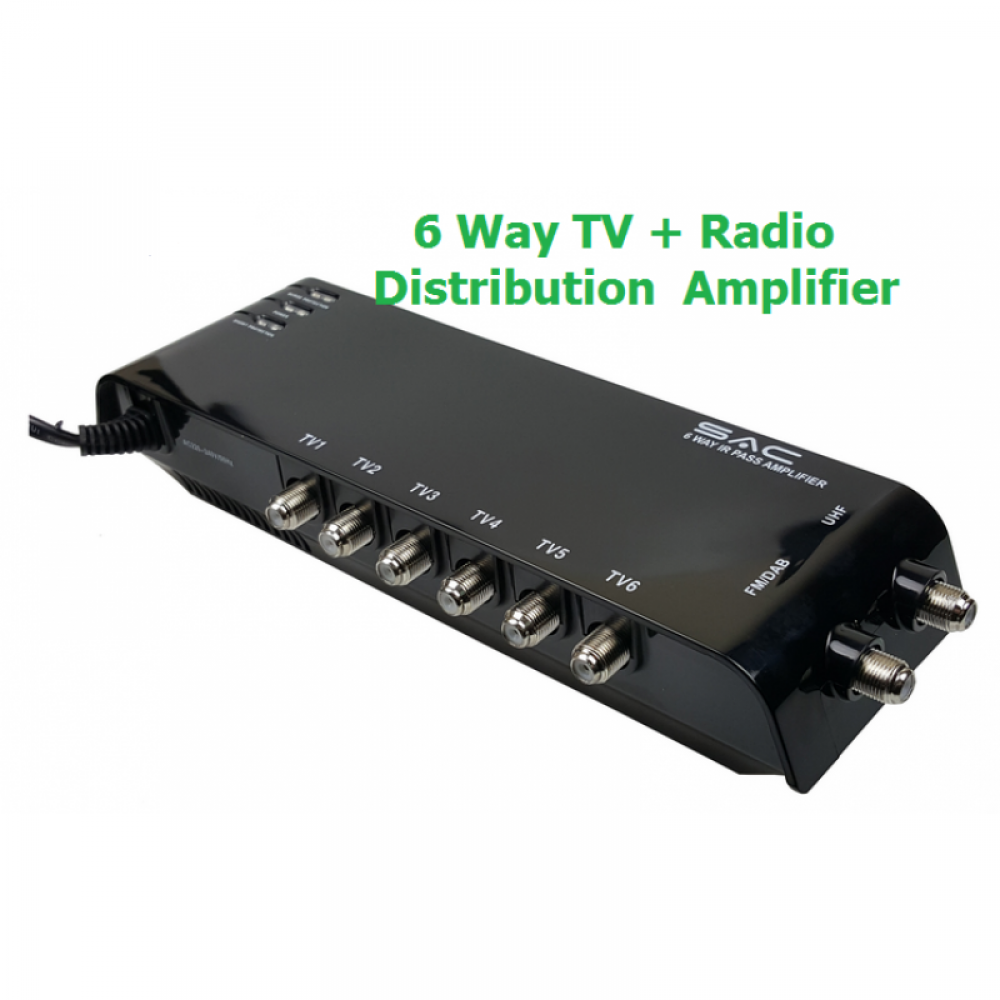

6 Way Indoor TV / Radio Amplifier

Distribute UHF-FM/DAB signals around your house with this 2 inputs + 6 outputs indoor TV and Radio distribution amplifier. With built-in IR pass for use with 'magic eyes'. It is also LTE/4G protected. Fully shielded with F type connectors. Power on, short-circuit and surge protector indicators.

Features;
Built-in IR pass for use with 'magic eyes' (not included)
Distribute signal to several TV's or Hi-fi's
Fully shielded with F type connectors
LTE/4G Protected
UHF + FM/DAB Inputs
Power on, short-circuit + surge protector indicator
Screw mounts on the back for a tidy installation
Stylish polished black ABS plastic housing

Specifications;
Number of inputs: 2 ( UHF + FM )
Number of outputs: 6
Input frequency band: UHF/VHF
Frequency range UHF: 470-790MHz
Frequency range VHF: 47-230MHz
Output frequency range: 47-790MHz
Return path frequency: 5-25MHz
Gain per split: 10dB
Output level: 90dBµV Max
Isolation: 22dB
Noise Figure: <3.8dB
Impedance: 75ohms
IR pass: yes
Short-circuit protection: yes
Surge protection: yes
Power supply: AC 220-240v 50Hz
ce certified
Dimensions: 235x80x45mm
Unit Weight: 0.587kg

Packaging;
Contents: 1 x TV Amp with power supply, 1 x Manual, 2 x screws
Dimensions: 245mm x 155mm x 58mm
Retail Weight: 0.653kg
