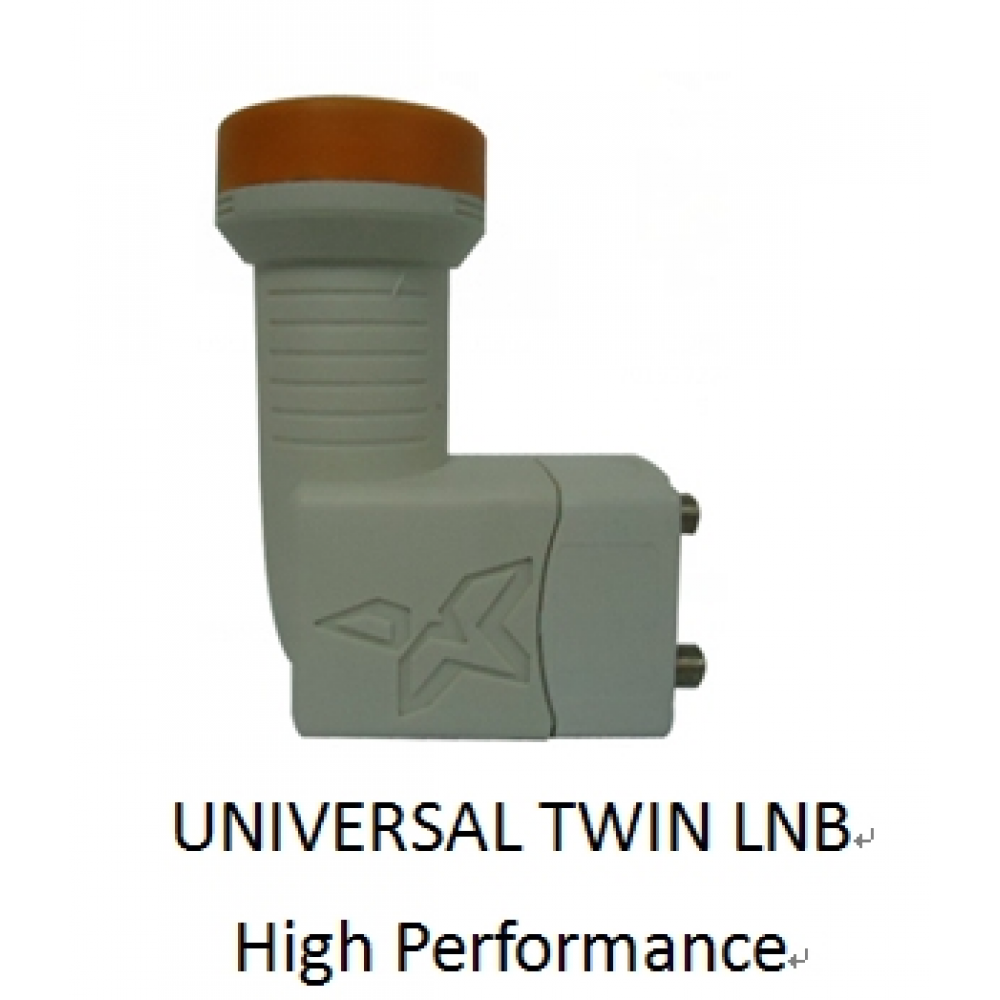

Universal Twin LNB 0.1db - 2 Outputs

This Universal Twin LNB 40mm has 2 outputs so you can run 2 different satelite receivers. Also suitable for twin tuner satellite receivers in one room. This Ultra Low Noise 0.1db Twin LNB is also suitable for weak transponders on far away satellites like Arabsat and Thor.

This LNB will not fit on a Sky dish but will fit on all the other satelllite dishes we sell. 40mm Collar so suitable for Technomate, Cahors, Sqish, Inverto and Channel Master satellite dishes.

Description;

DVB-S / S2 Compliant
Noise Gain upto 0.1db
2 Separate outputs
40mm Collar Diameter
Ultra Low Power Consumption
HDTV + 3D Ready
Cold + Heat Resistant
High Frequency Stability
Input Frequency 10.7GHz - 12.75GHz

Model – Twin LNB;

Cross polarity isolation 20dB(Min)
Output VSWR 2.0:1(Typ)@25℃
Output impedance 75ohm
Output connector Type F Female
Conversion Gain 55dB(Typ)
Gain Flatness  ±3(±0.5dB/26MHz)
P1dB Gain compression 5dBm(Typ)
Noise Figure 0.1dB
Image Rejection 45dB(Typ)
LO Frequency 9.75GHz  ;10.6GHz
LO Frequency stability ±1MHz(Max)@25℃ ±2.5MHz(Max)@-30~60℃
Phase Noise -60dBc/Hz@1KHz offset
-80dBc/Hz@10KHz offset
-100dBc/Hz@100KHz offset
Band select control High Band :22kHz  ,Low Band:  0 kHz
Polarity select control V:11.5~14V DC  ,H:16~20V DC
Work current 200mA
